Universal Battery Holder

Introducing the Universal Battery Holder, a lightweight and user-friendly battery holder specifically designed for shorty batteries. This holder can be effortlessly installed on any Bingo Wasp chassis, as well as MST RMX 2.0/2.5/M chassis (eliminating the need for body pins). The Universal Battery Holder is compatible with both thin (~19mm) and thick (~25mm) shorty battery packs. Initially created for the MST RMX chassis, it has since become compatible with virtually any Wasp Chassis. The holder is available in either red or black anodized hardware, depending on the carbon color. Standard matte twill carbon offers both red and black hardware variations.

Click Here to learn more about the Universal Battery Holder V2

Purchase Here

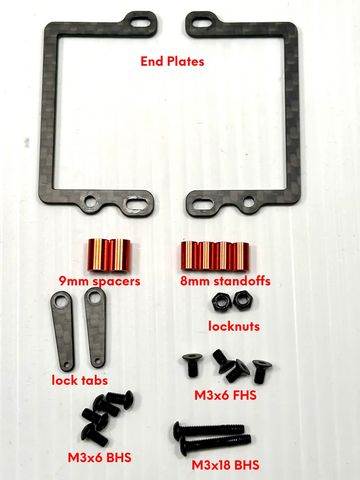

1. Universal Battery Holder Parts

The Universal Battery holder kit includes:

2 x end plates

2 x lock tab

2 x 9mm spacers

4 x 8mm standoffs

2 x locknuts

2 x M3x18 BHS

4 x M3x6 BHS

4 x M3x6 FHS

* updated, now includes hardware for shorty thick batteries

2 x M3x24 BHS

2 x 15mm spacers

2. Install Lock Tabs

Install lock tabs as shown. Slide the lock tab onto the M3x18 BHS, followed by the 9mm spacer, then the end plate and lock nut. Lightly tighten the lock nut, then back out enough to allow the lock tab to turn with a bit of friction grip. You can swap out the 9mm spacers and 18mm BHS with the 15mm spacers and 25mm BHS if you want to use thick shorty batteries (<25mm thick)

3. Attach Standoffs

Loosely attach the 4 x 8mm standoffs to the end plates as shown, using the 4 x M3x6 button head screws.

4. Attach End Plates to Chassis

Attach the end plates using the 4 x M3x6 flat head screws.

5. Bottom view

Tighten down the 4 flat head screws.

6. Adjust End Plates

Adjust the end plates to fit your battery. Allow a little bit of room for easier removal of the battery. Tighten down the 4 button head screws.
